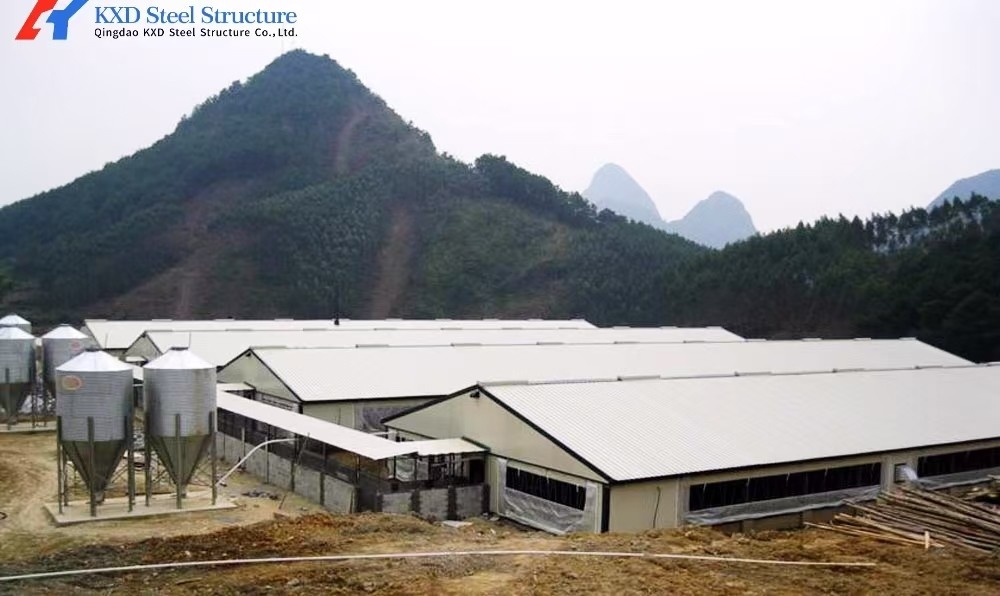

Prefabricated Lightweight Steel Structure Chicken House Shed with ISO9001 CE Certification

Prefabricated Light Weight Steel Structure Chicken House Shed Steel Poultry House

Feed pan is the core of feeding system. Feed in the hopper is delivered by the motor, through delivery pipe to fulfill feed pans one by one. When all feed pan is full of feed, control box will stop the motor from working; when feed in the feed pan is eaten up, control box will start the motor working again.

Details of broiler feeding pan
Number of grilles per pan	14	16
Number of birds per pan can feed	40-45	45-50
Distance per grill	70mm	70mm
Density of broiler	10-12birds/m²	10-12birds/m²
Max feed per pan for one bird per day	180g/bird	180g/bird
Dimension	330x330mm	360x360mm

This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easily. Automatic drinking system will include nipple drinkers, filter, pipe connection, lifting piece, dosing device, tube fix clip, s-hook, lifter, small pulley, nylon cord.

Environment control system has chicken grow temperature curve, minimum air volume curve, light curve, automatic control crosswise and length ways ventilate. Control exhaust fan, heater stove, curtain, cooling pad, light system and feeding line. The system can through the mobile phone to realize remote real-time monitoring and management.

Intelligent control, high efficiency and energy saving, warming fast, safe and durable, stable equipment heating effect for livestock and poultry house.

• Vice driver
• The feed pan
• Feed tube
• Augor
• Side feed box
• The lifting device
• Porching prevention device

The Steel Structure Poultry House will be shipped by sea. Delivery time will vary based on the destination and shipping method. Customers will be provided with tracking information once the product has shipped.

Our commitment to customer satisfaction means that we are always available to answer any questions or concerns that may arise, and we work tirelessly to ensure that our customers are fully satisfied with their purchase. We are dedicated to providing top-notch technical support and services for the Steel Structure Poultry House product.
